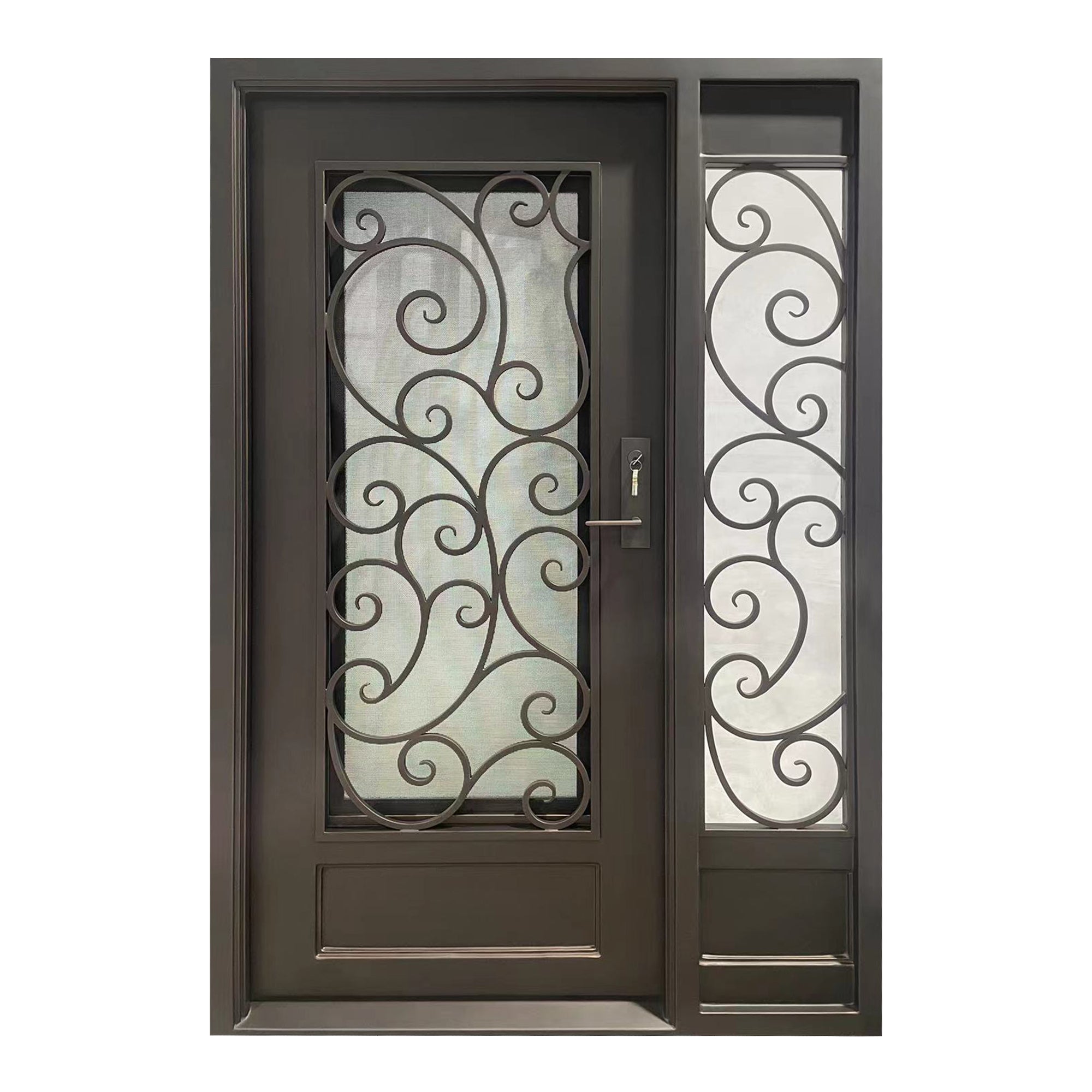

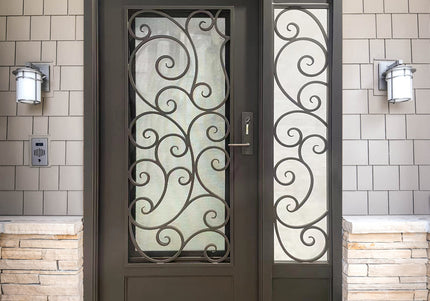

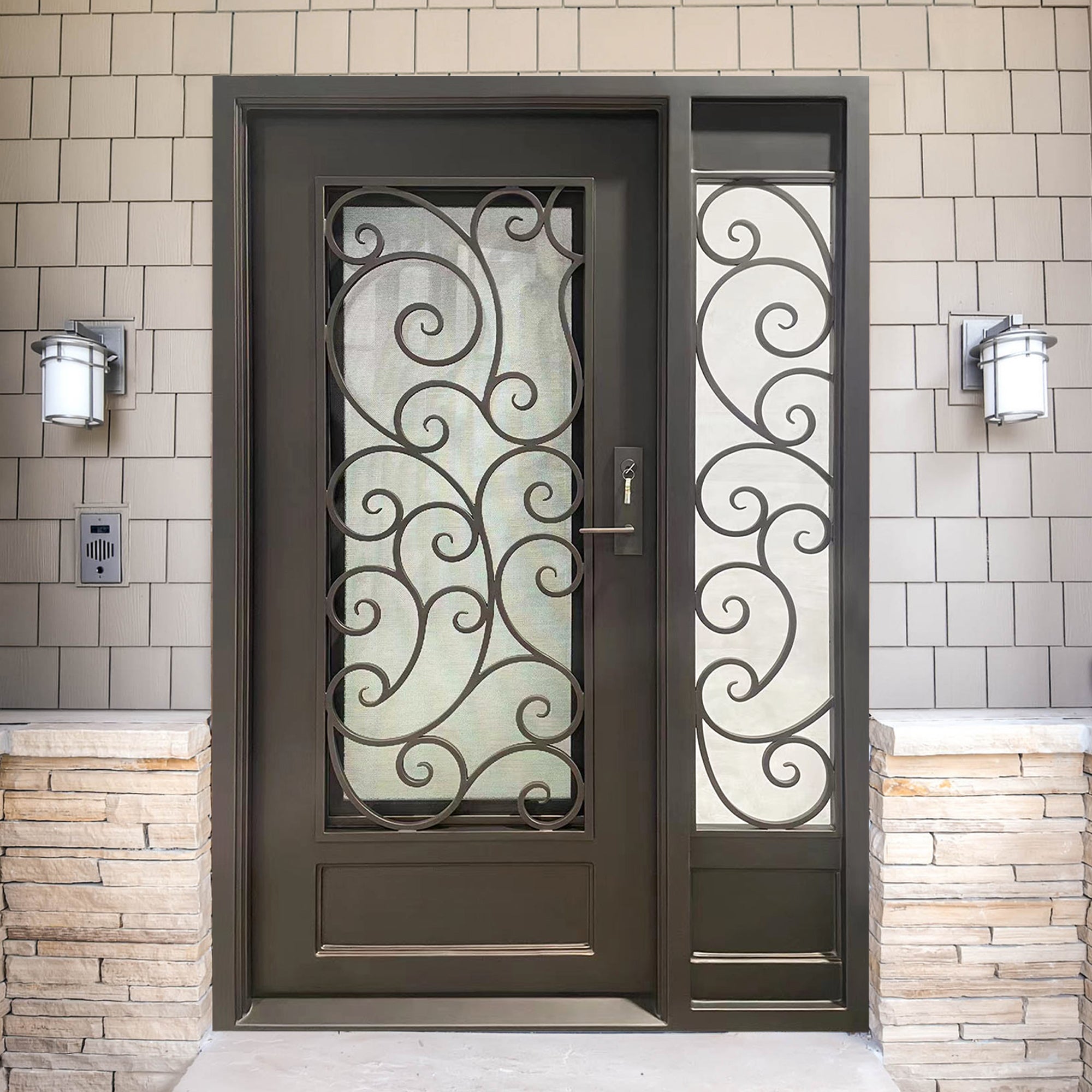

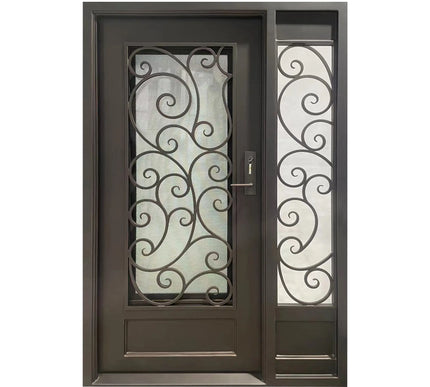

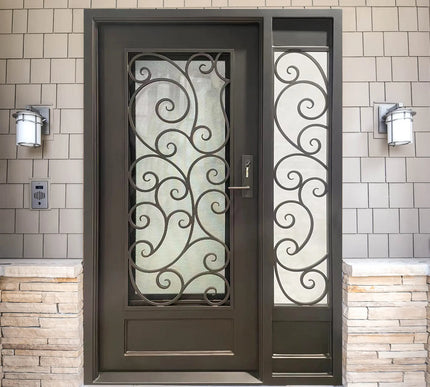

Elite High Quality Iron Single Entry Door with Single Sidelight E-S106
$2,898.00
Product Description
About Product:
Size Guide
Choosing the right size for your iron door is as important as selecting the design. Unlike standard doors, wrought iron entry doors are heavy architectural elements that require precise measurements for proper installation, operation, and long-term performance.
This guide will help you:
✔ Correctly measure your rough opening
✔ Understand iron door sizing
✔ Learn how jamb dimensions affect installation
✔ Avoid common measuring mistakes
Door Net Frame Size, Rough Opening Size, and Jamb Size
First: Rough Opening Size Confirmation
To accurately measure a rough opening, remove the trim or casing around the door or window, then measure the width between the studs(or sides of the opening) and the height from the subfloor to the bottom of header.
If you are replacing the old door, and want to confirm the rough opening without removing the door, you can measure it brick to brick to get the rough opening size.
Second: Confirm The Iron Door Size
All the wrought iron doors are pre-hung, therefore, the door size indicated will be the net frame size, including the jambs and threshold.
To achieve a proper installation, pls leave at least 1" in width and 1/2" in height installation gap based on the rough opening.
For example, if you want to make the door net frame size 60x96, then the rough opening size should be at least 61x96.5.
Size Table
| Door Net Frame Size | Rough Opening (at least) |
| 36x81 | 37x81.5 |
| 48x96 | 49x96.5 |
| 60x81 | 61x81.5 |
| 72x96 | 73x96.5 |
Third: Which Jamb Size Should I Choose?
1. Measure Your Wall Thickness
-
Measure from drywall to drywall (or exterior sheathing if exposed).
-
Common wall thicknesses:
-
2×4 wall = 4.5" (3.5" stud + ½" drywall each side)
-
2×6 wall = 6.5" (5.5" stud + ½" drywall each side)
-
Masonry/block walls = 6"–8+" (varies)
-
2. Choose the Correct Pre-Hung Jamb Size
| Jamb Size (Width) | Designed for Wall Thickness | Common Wall Type | |
|---|---|---|---|
| 4-9/16" | 4.5" (4-1/2") | 2×4 stud walls (3.5" stud + ½" drywall each side) | |
| 6" | 5.5"–5-7/8" | 2×6 stud walls without drywall, or thin sheathing | |
| 6-9/16" | 6.5" (6-1/2") | 2×6 stud walls (5.5" stud + ½" drywall each side) |
The common mistakes while you are confirming the door size.
1. The door size is for the door slab only. (x)
The door size indicated on our website is the net frame size, including the frames/jambs and threshold if there is one. If the door has a transom above or the sidelights, the size also includes the frame.
2. No installation gap leaving for the door unit. (x)
Pls leave at least 1" in width and 1/2" in height for the installation gap. Therefore, the rough opening size should be at least 1" wider and 1/2" taller than the door net frame size.
3. The jamb size is not important. (x)
If the jamb is too small, the framing or rough opening may be exposed.
If the jamb is too large, it will need to be trimmed and fitted to the wall.
Of course, Elite Custom Door will verify all the measurements with you before production. And the CAD drawing will be provided for approval, to avoid any mistakes.
If you have any questions, pls contact us at info@elitecustomdoor.com.
More Product Details
Material:
- Standard door jamb and slab are made with heavy-duty 12-gauge steel.
- 2" Thick Door Insulated With Polyurethane Foam Injected For Thermal Efficiency
Finishes:
- 7 coats of paint on top of zinc galvanized steel to prevent iron doors from dust & rust.
- Expertly Hand Painted Using High-Quality Automotive Acrylic Paint With Stunning Faux Finishes
Jamb:
- Innovative 2" x 6" jamb filled with high-density polyurethane foam for energy efficiency.
- Heavy Duty Hinges Support 1500 Pounds
Glass:
- Each standard exterior iron door features dual pane tempered glass 5/8” for optimum safety.
- Decorative doors feature operable glass for easy cleaning and ventilation.
- Variety of glass finishes available for options.
Weather Seal:
- Specialized Vinyl Weather Stripping & T-astragal for Optimal Air Seal
- Robust Door Sweep Installed On Door
Installation:
- All our iron doors come pre-hung for easy installation.
Order Process
Every Elite Custom Door is premiumly crafted, and will take every step seriouse, guaranteeing the door meets the high standards and perfect customer's door specs.
If you size is listed in our store:
Order Confirmation
Select all the iron door specifications that you will make, and place the order directly.
Drawing Approval Before Production.
A CAD drawing will be sent within 24-48 hours after the order confirmation. And once the drawing is approved, we will start production for you based on the approved drawing.
Production
The production will start once the drawing is approved.
Photos will be updated for customers during different stages of production.
Shipment
The door will be professionally packed in one wooden crate with steel frames for safe shipment.
Customers will be informed of the tracking number before they receive the door.
If your size is not listed:
Pls contact us at info@elitecustomdoor.com to confirm the size and design first, and once the details are discussed and confirmed, we will send you a link with your door details to place the order.
Shipment & Delivery
- We offer free door-to-door delivery to the continental United States.
- Our doors are also available for shipping to Canada/Australia/New Zealand, etc, please provide your address for a quote.
- Our doors are securely packaged in wood crates, steel frames, and industrial-strength extra-thick stretch wrap to prevent damage during transportation. Rest assured that your item will arrive in new and undamaged condition.
Production begins after your custom door drawing is reviewed and officially approved by you.
- Standard Production & Shipping Time: 98-112 working days
- Expedited Shipping: Currently unavailable
- We’ll notify you via email once your door ships and provide delivery tracking details.
- After arranging the truck booking, the tracking number will be shared to allow package tracking and delivery scheduling.
